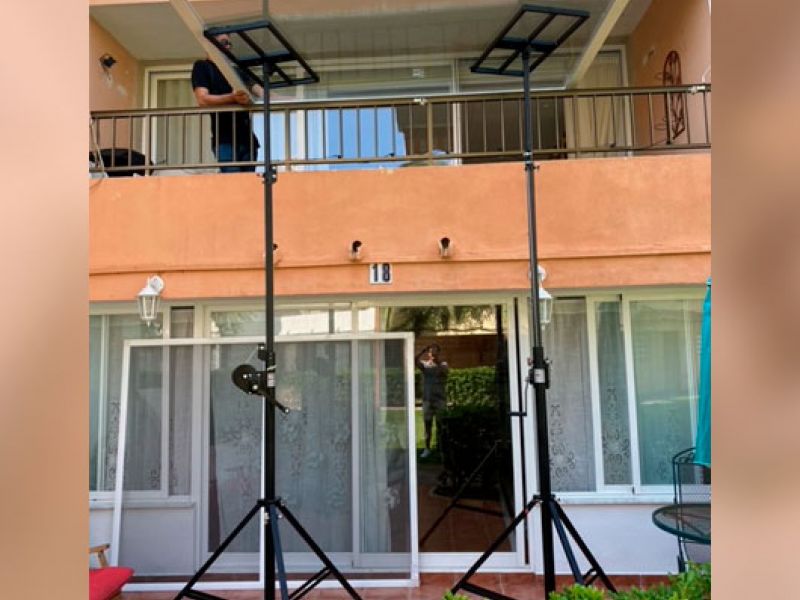

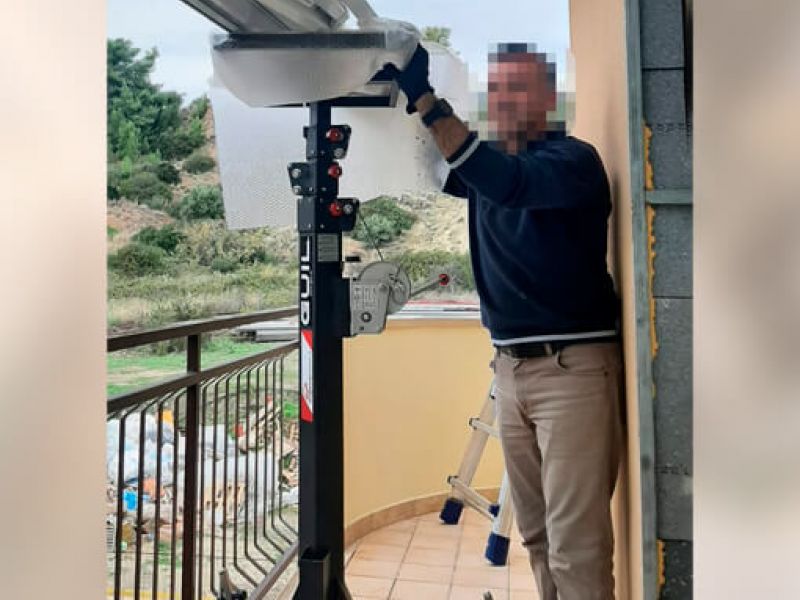

Awning Installation Crane

The GUIL ELC-730/R offers reliability and ease of use when installing an awning. Its solid construction and precision enable safe lifting and installation. With a lifting height of 4.58 meters and a load capacity of 125 kg, it is ideal for all types of awnings.

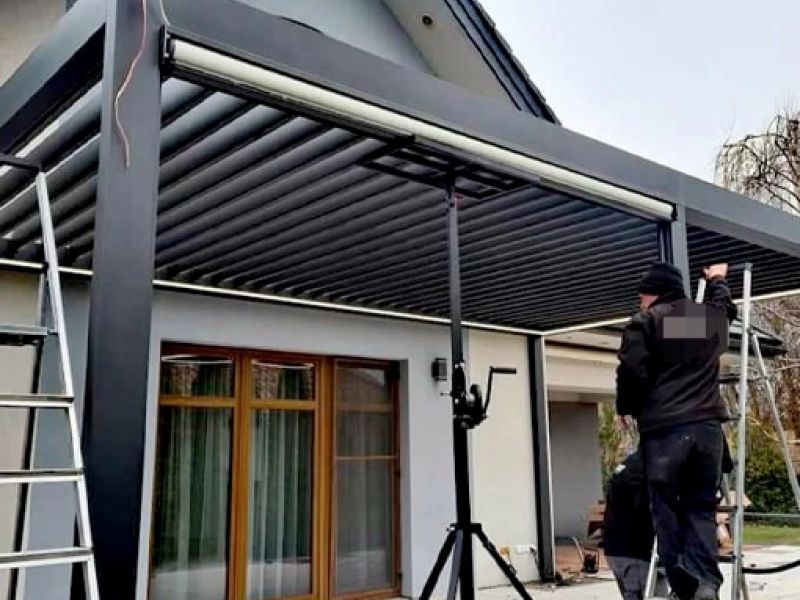

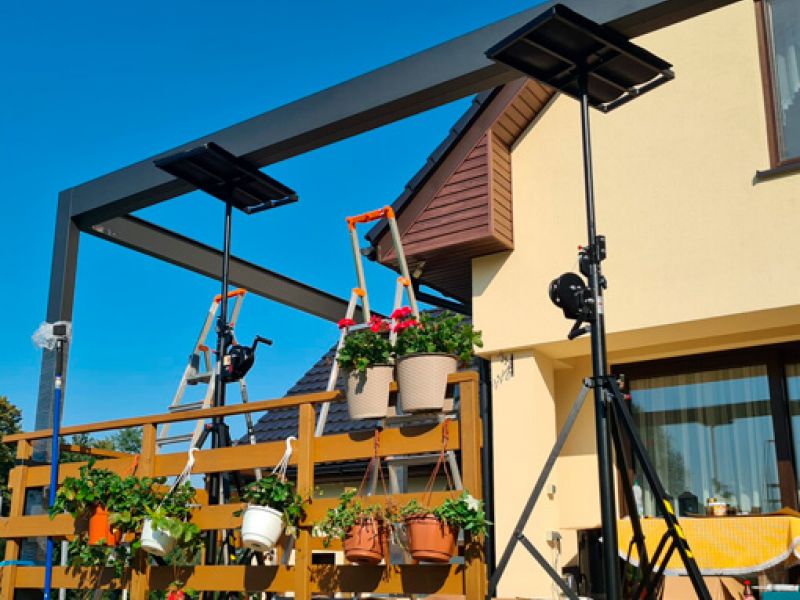

Crane for Pergola Assembly

With the GUIL ELC-730/R, the installation of the pergola becomes simple and safe. This crane ensures stability and precision when lifting heavy elements. Its light weight of 37 kg makes it easily portable and flexible for working in different locations.

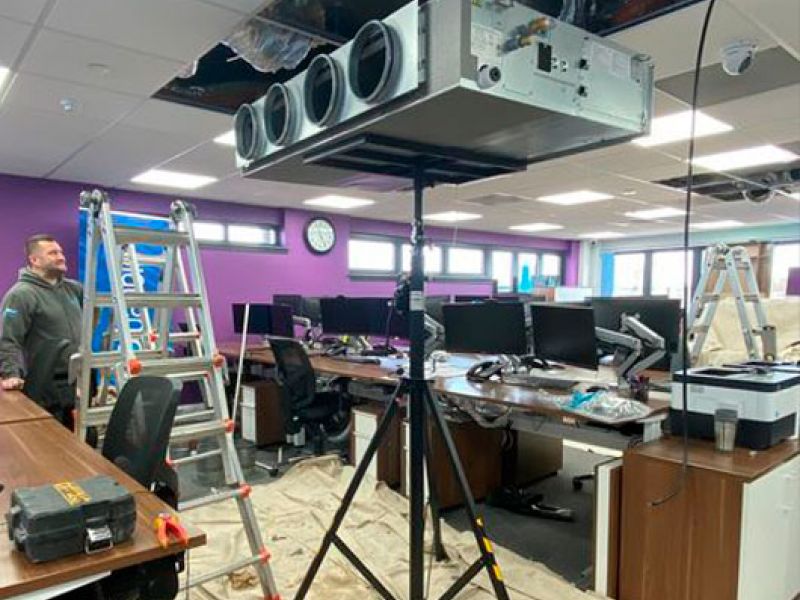

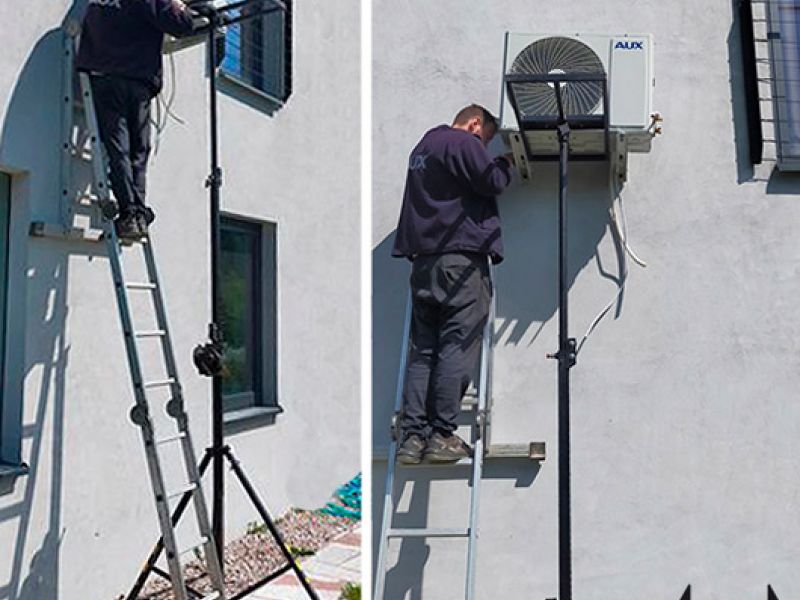

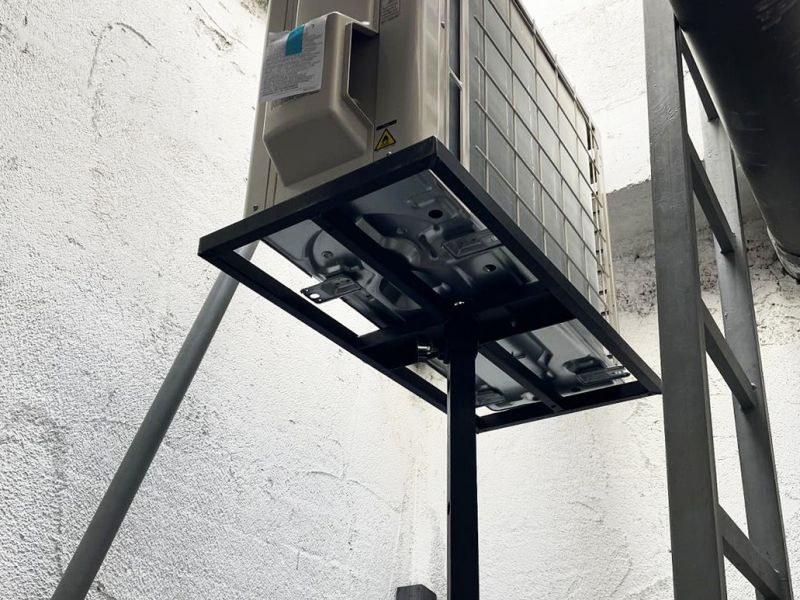

Crane for Air Conditioning Installation

Using the GUIL ELC-730/R, you can easily mount air conditioners at a height. The crane is designed to work in tight spaces, providing flexibility and safety. With a load capacity of 125 kg and a lifting height of 4.58 meters, it enables the safe lifting of heavy air conditioners.

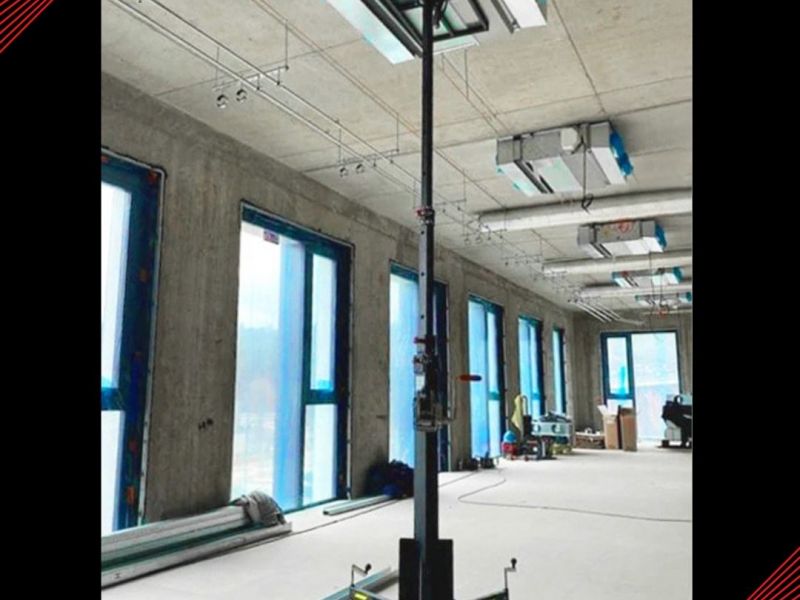

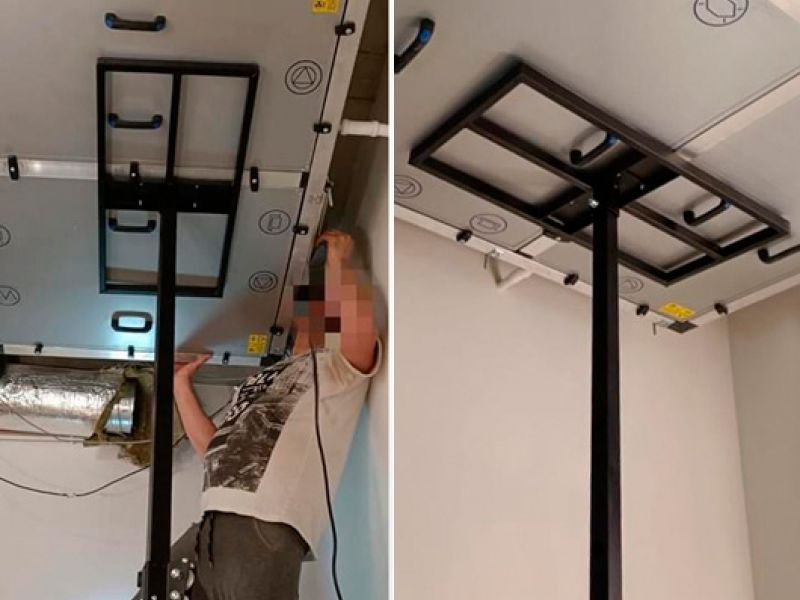

Crane for Installation of Air Conditioning Channels

Installation of air conditioning ducts has never been easier. The GUIL ELC-730/R enables precise lifting and placement of air conditioning ducts on high walls and ceilings. With a crane weight of only 37 kg, it can easily be moved to the desired location.

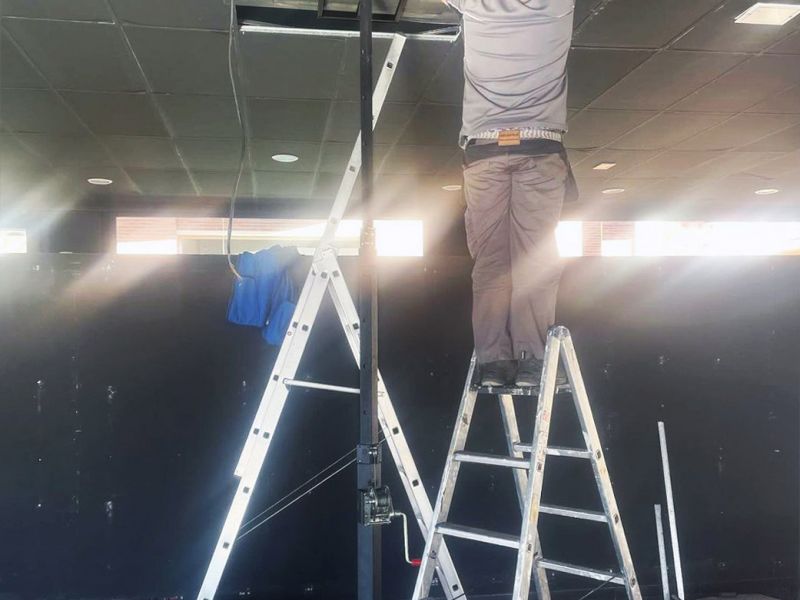

Knauf Installation Crane

GUIL ELC-730/R enables precise lifting and placing of Knauf panels on high walls and ceilings. It is ideal for construction work and renovations, with a lifting capacity of 125 kg and a maximum height of 4.58 meters.

Crane for Beam Assembly

The lifting and installation of beams requires reliable equipment. The GUIL ELC-730/R ensures stability and safety when working with heavy and large beams. With a lifting height of 4.58 meters and a load capacity of 125 kg, this crane is ideal for all types of construction work.

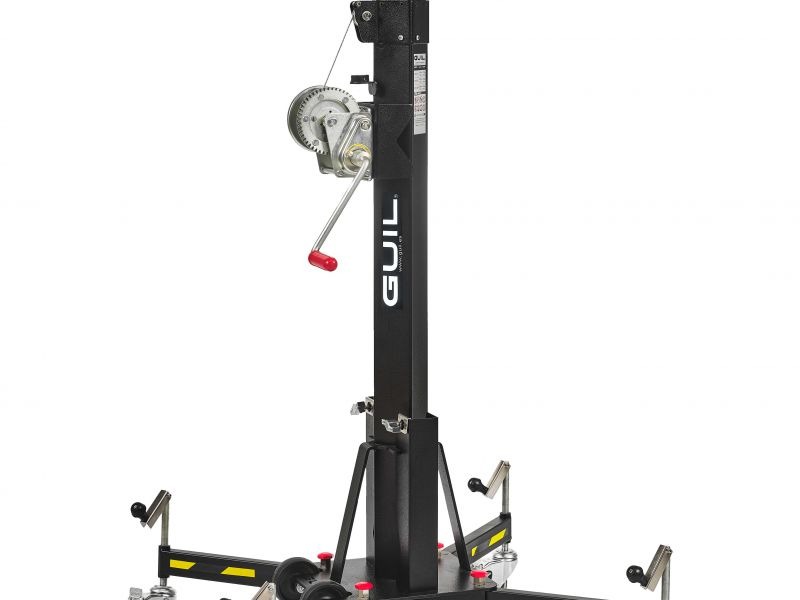

Material lifter made of steel, designed for lifting loads up to 125 kg to a maximum height of 4.58 meters.

Its compact design, easy handling (no additional tools required), and limitless applications make it the perfect addition for any type of job.

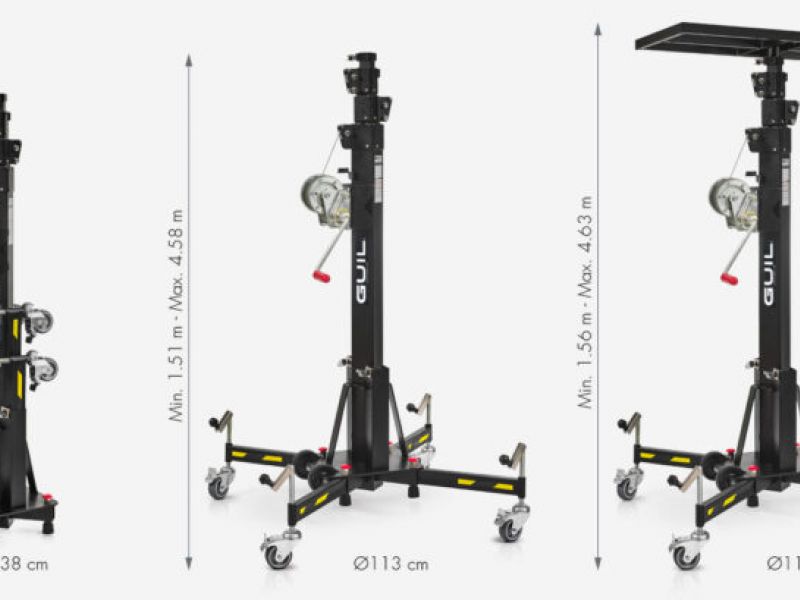

Technical specifications:
Maximum lifting height: 4.58 m
Maximum load capacity: 125 kg
Starting height: 1.45 m
Transport: Equipped with 6 wheels
Transport dimensions: 30 x 38 x 145 cm
Net weight: 37 kg
Warranty: 3 years.

BASE:
The compact base measuring 38 x 30 cm, with two wheels for easier handling, enables access to narrow spaces such as hallways and doors. The narrow base allows the use of the ELC-730/R lifter in narrow spaces, such as bathrooms or corridors, while maintaining the lifting height.

LEVELING LEGS:
The legs are equipped with swivel wheels with brakes and leveling screws, which allows the lifter to be moved to the desired position and secured stably. Each leg has an adjustable jack for precise leveling on uneven terrain.

SAFETY BRAKE:

 ELC-730/R is equipped with a manual winch with an automatic braking system that locks the load when the handle is released. These hoists comply with the safety requirements of the Machinery Directive 2006/42/CE.

TRANSPORT

The ELC-730/R lifter has a compact and lightweight design for easy handling, transport and storage, with two wheels at the base for easy manoeuvrability. With a height of only 145 cm when folded, it can fit into small vans or even a car, and takes up little storage space.

Learn more about our other assembly products and find the perfect solution for your needs.
