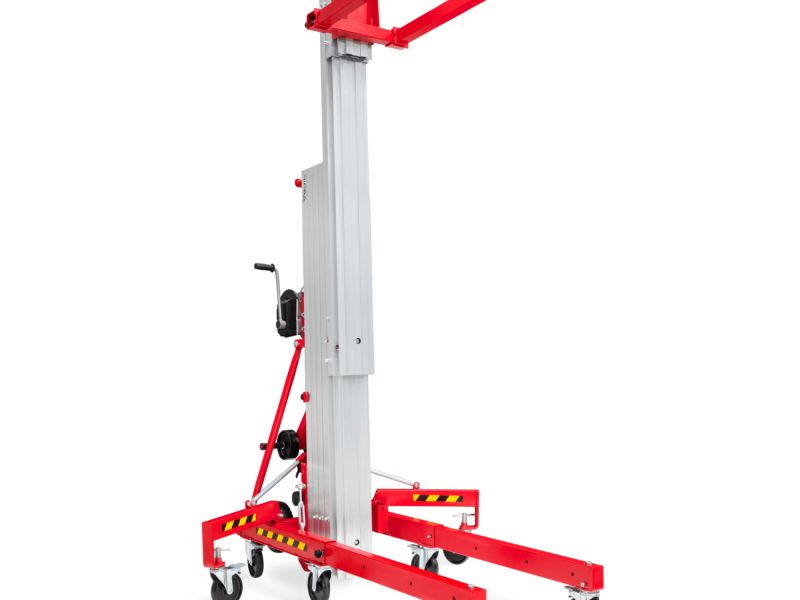

Material lifters Toro C-306

Maximum Height:     8.00 m
Folded Height:     1.99 m
Maximum Load:     300 kg
Net Weight:     195 kg
Warranty: 3 years


Categories:
Guil

Maximum lifting height (Forks up)     8.00 m
Maximum lifting height (Forks down)     7.58 m
Maximum Load     300 kg
Height stowed     1.99 m
Load height     30 cm
2-in-1 design lifter     Front or rear legs (included)
Leveller screw-jacks     On side stabilisers and legs
Side stabiliser arms     Included
Telescopic legs     Included
Safety Systems     IPB System (Internal Pendulum Brake) + MSU System
Brake Winch     Double-handled
Transport     Equipped with 12 wheels
Folding handgrip with wheels     Yes. For horizontal transportation and loading in vehicles
Stowed dimensions     95 x 66 x 199 cm
Material      Aluminium (alloy EN AW 6082-T6) & Steel
Complies with Standards     2006/42/CE
Net Weight     195 kg
Sections     5 – Profile dimension (width): 180 mm

The TORO C-306 lifter that thanks to its components has a sturdy but light design, is certified to lift loads of up to 300 kg to a maximum height of 8 metres.

This Material Lifter, with 5 aluminium mast profiles that are raised with a pulley system, is supplied with all the necessary components and accessories for its use: side stabiliser legs with levellers, forks, double-handled winch, wheels for vertical and horizontal manoeuvring, etc.

Our lifters have a special design that allows the legs to be inserted both in the front and the back of the tower, to be able to use it flush to the wall or workspace. These legs are equipped with height adjustable wheels. (Note: Counterweight holder and weights available)

The lifter is equipped with an automatic brake winch with two handles, which stops and holds the load at the desired height; when the handles are released the automatic brake holds the load in place.
The winch has two removable crank handles so that the tower can’t be used by unauthorised personnel, and also saves on space for the transporting and storage of the lift.

Thanks to its special design to easily load it into vehicles, the simple positioning of the load to be lifted and its quick and easy set-up this lifter is considered one of the most functional towers on the market.

Note: GUIL has designed a practical and safe way to raise the TORO C-306 with an electric system (ref. ELECTRIC-C). This electric system (sold separately) converts the lifter into an electric tower.
